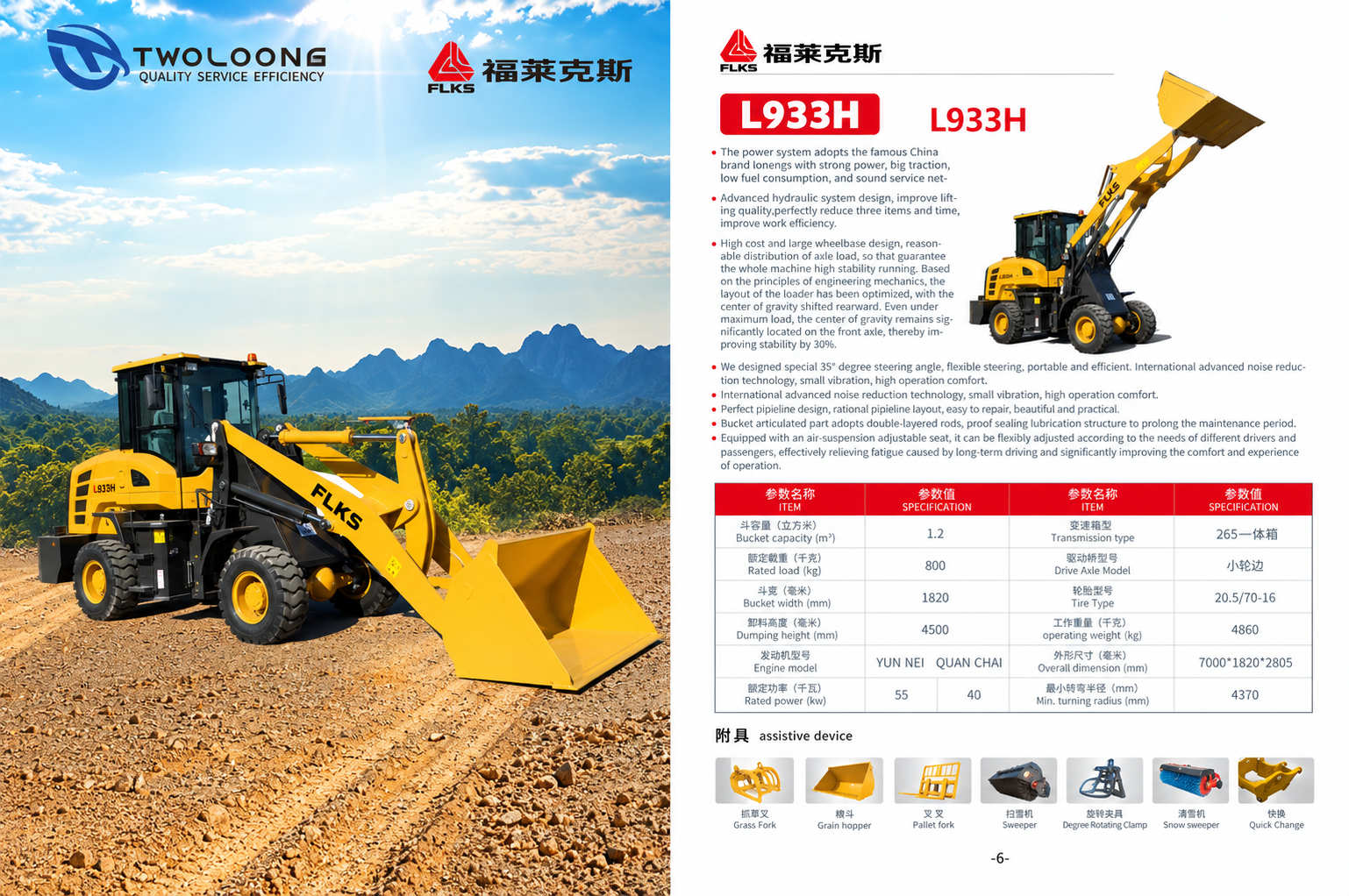

FLKS L933H Wheel Loader – Technical Specifications
The FLKS L933H Wheel Loader is designed for material handling, construction projects, plantations, and other heavy-duty applications.
Technical Specifications L933H
Core Parameters:
-
- Rated Load / Payload: 3,000 kg (3 Tons) (Some configurations list 2,700 kg)
- Operating Weight: 10,100 kg to 10,586 kg
- Standard Bucket Capacity: 1.5 m³ to 3.0 m³
- Maximum Breakout Force: 96 kN to 100 kN
Engine & Powertrain:
- Engine Model: Weichai WP6G125E22 / WP4.6NG135E501
- Rated Power: 92 kW (132 HP) @ 2150 rpm
- Max Torque: 610 Nm @ 1400 rpm
- Transmission: Fixed shaft power shift transmission (4 Forward / 2 Reverse speeds)
- Maximum Travel Speed: 41 km/h
Operating Dimensions:
- Overall Dimensions (L × W × H): 7,370 mm × 2,520 mm × 3,240 mm
- Wheelbase: 2,850 mm
- Maximum Dumping Height: 2,950 mm to 3,278 mm
- Dumping Distance: 1,020 mm to 1,050 mm
- Maximum Steering Angle: 36° to 38°
Hydraulic & Brake Systems:
- Hydraulic System Controls: Single joystick pilot-operated controls
- Total Cycle Time (Raise + Dump + Lower): ≤ 9.0 seconds
- Service Brakes: Air-over-hydraulic caliper disc brakes
- Fuel Tank Capacity: 160 Liters
